For now, I removed the 2 port splitter and the other device, and plugged the Victron cable directly into the NMEA T. I do see the Garmin devices on VE.Can port 2 (see photos) - but I still am not seeing the data in the Signal K data browser.

Ah that (terminator) might be the issue - see photo - looks like it was installed with a 2 port T, without a terminator.

I can pick one up at my next port of call and see if that fixes the issue.

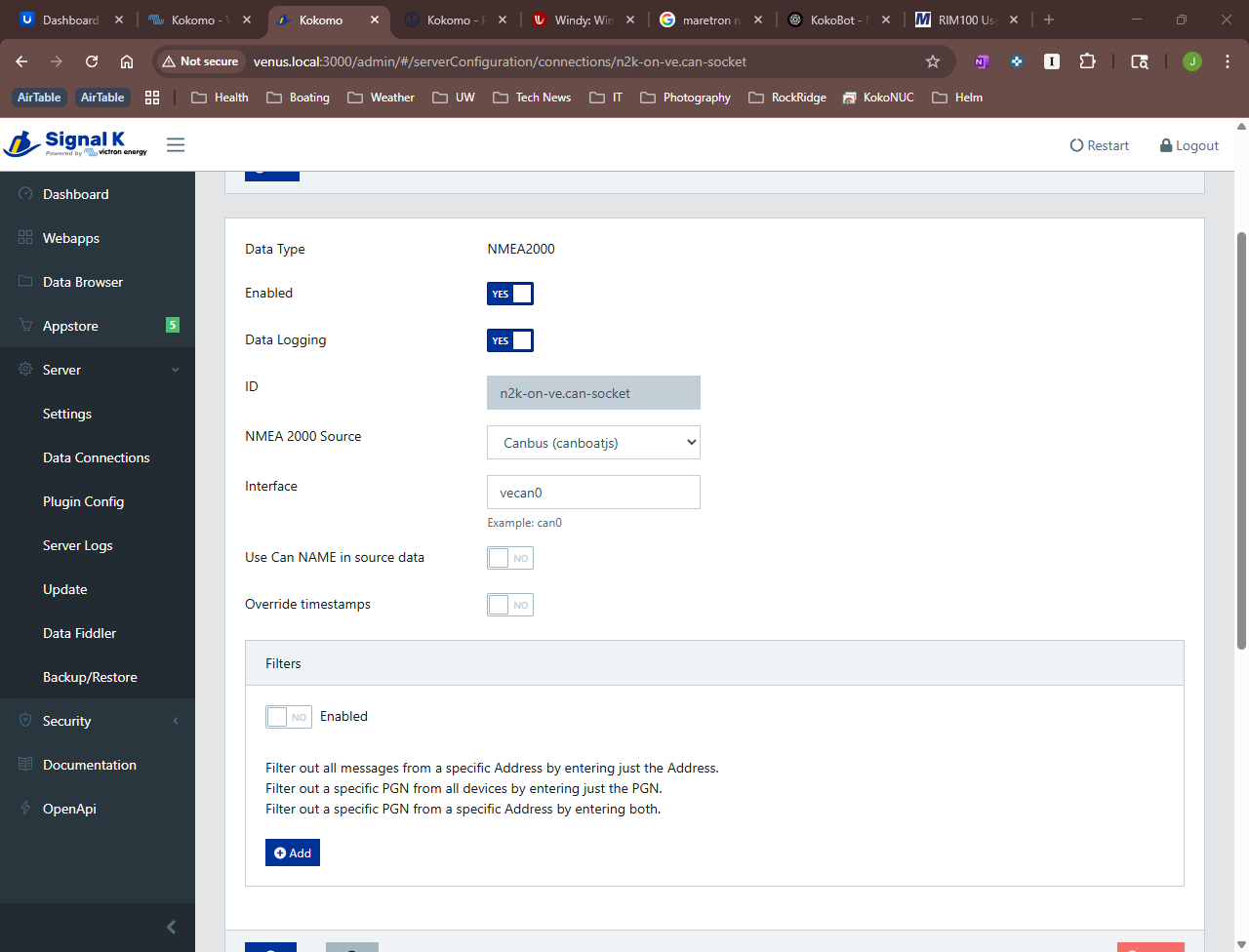

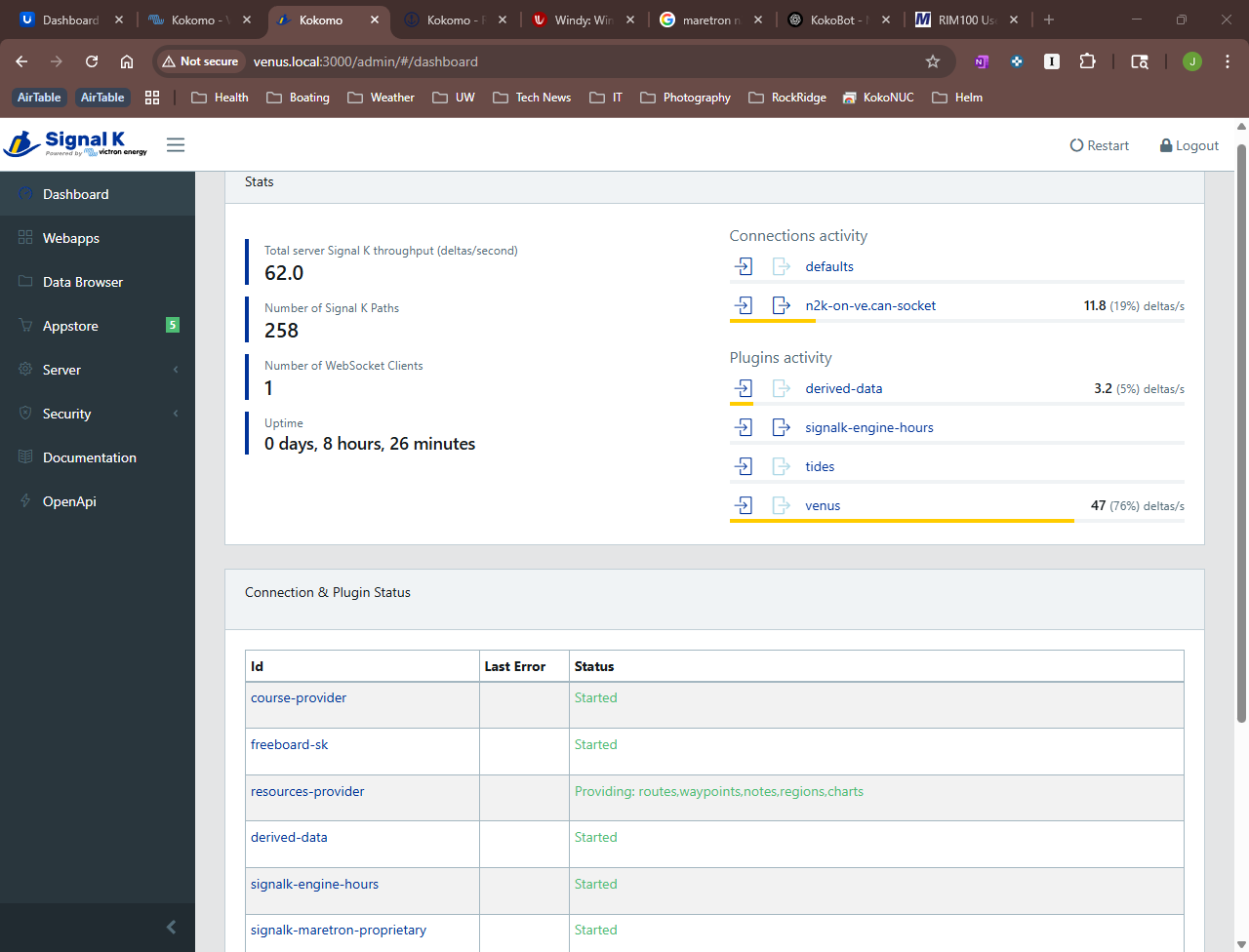

I am seeing NMEA2000 activity - see screen shot - perhaps I have not configured the interface correctly? I am seeing Maretron NMEA2000 data in SignalK, such as tank levels, which are on the same NMEA2000 network.

I also ran Actisense NMEA reader and I see PGNs coming from the Maretron J1939 to NMEA 2000 gateway.

Uploaded 3 screen shots:

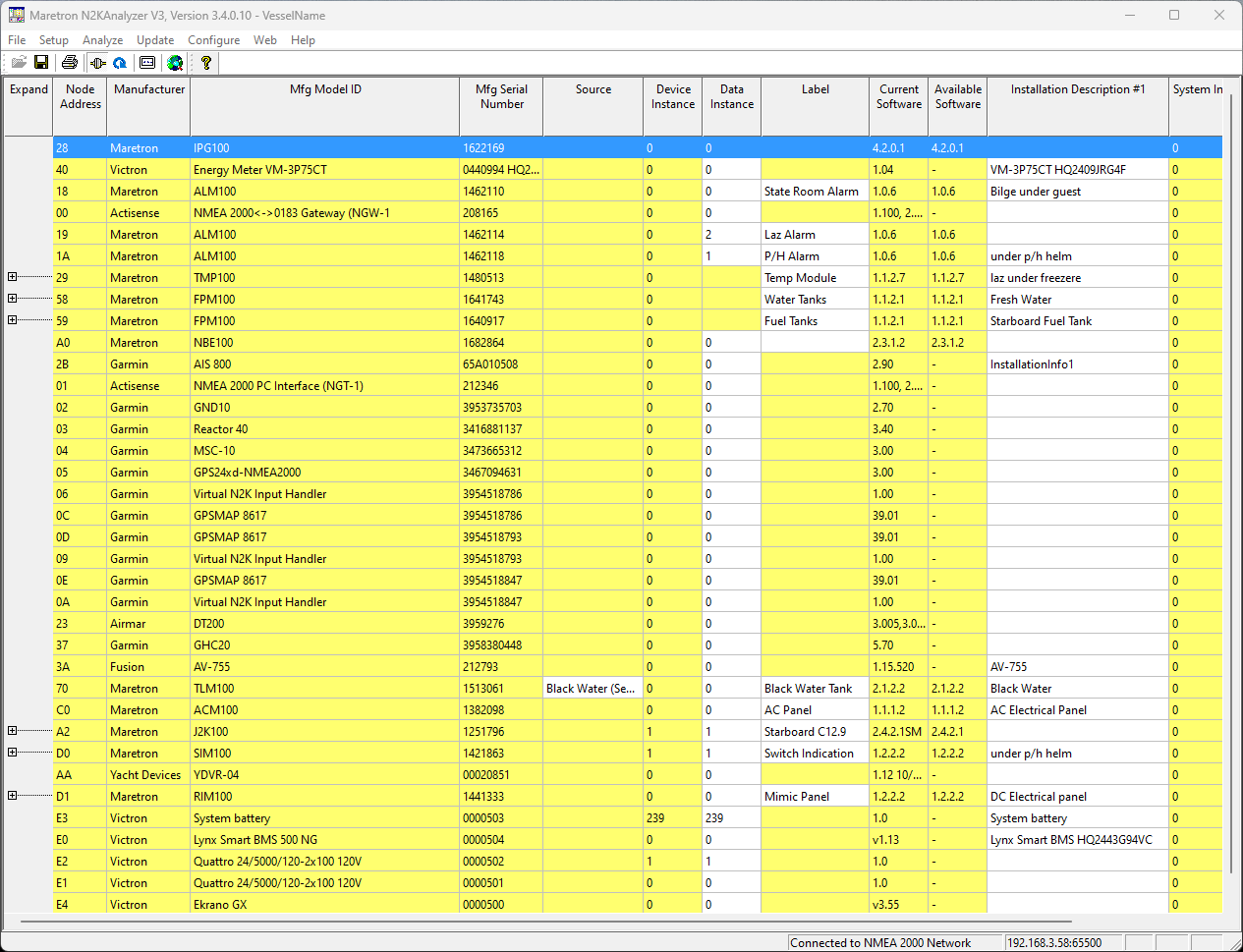

• all the devices on the NMEA2000 network

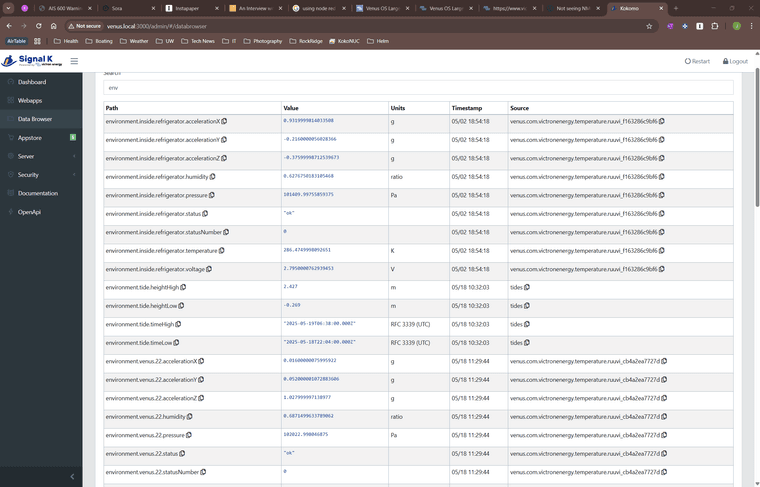

• The environment details from Data Browser

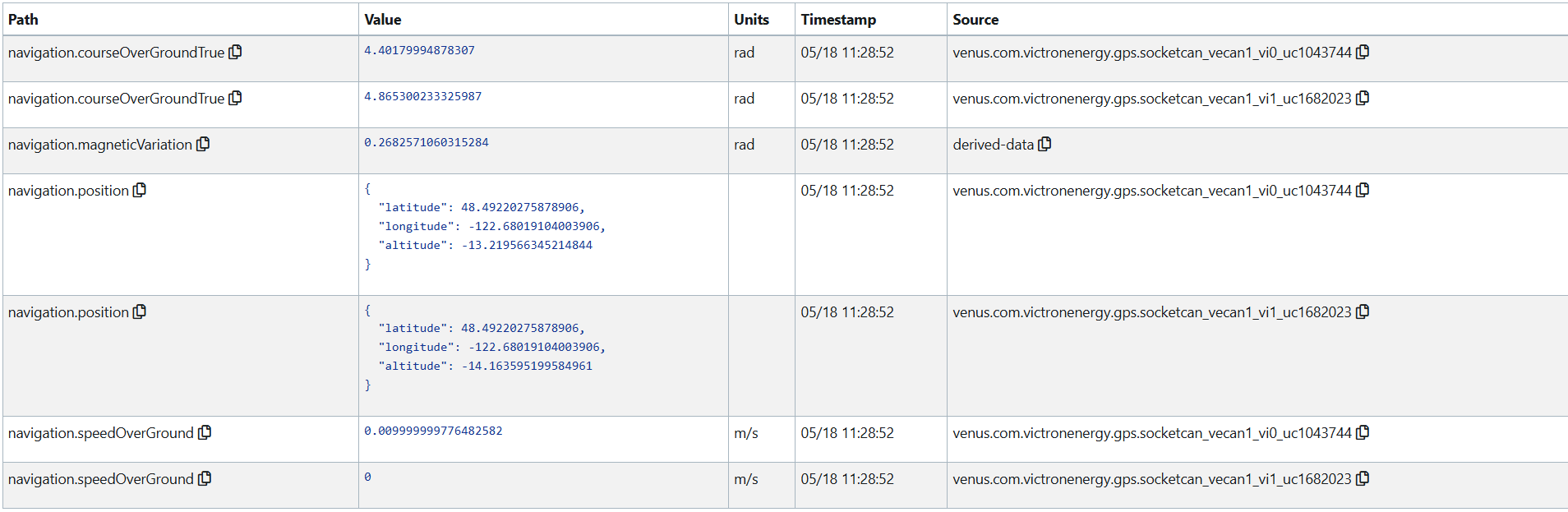

• The navigation.position from Data Browser




I have an Ekrano GX with Large Image, running SignalK. Under the Signal K data browser, I see most of the NMEA 2000 data from devices on the network, but some is missing. I see GPS data but no other Garmin data.

I have a NMEA2000 data logger on the network and it captures all of the engine data (provided by Maretron J1939 to NMEA2000 device), but I don't see any of this in Signal K.

How do I configure Signal K to see other NMEA2000 device data, that can then be logged in Saillogger?
